Chigadzirwa mamiriro: DN50 ~ 700mm
Pressure class: PN0.6 ~ 4.0mpa
Inoshandiswa pakati: mvura, chiutsi, mafuta, acid inoparadza, nezvimwe
GYPYD363H yakaoma kuomesera welding butterfly valve inogadziridzwa nevashandi vedu vehunyanzvi mushure mekutora chimiro nehunhu hwezvigadzirwa zvekunze zvakafanana uye kukunda hurema huripo mukushandiswa kwezvakagadzirwa, zvichiita kuti hupenyu hwesevhisi hwayo hurambe hwakasimba uye kuvhara zvakanyanya kuvimbika. Ivhavhavhavhavhavha rinotora matatu-dimensionaeccentric design musimboti, uye mbiri yekuisa chisimbiso inoumbwa ottwo overlapping cone inclined section. Mushure mekukosha kweiyo eccentric yemuviri wevharuvhu uye chigaro chevharuvhu, iyo buterly plate inotenderera nzvimbo inogona kudzoreredza kusangana nekukasira uye kupatsanurwa kwekuvhura nekuvhara. Thelabyrinth chisimbiso chinodzokororwa neaminated chimiro chebuterly plate seaing ring simbi uye graphite, iyo isingangogone kudzikisa switching torgue oithe valve, asi zvakare kuve nechokwadi chekuisa chisimbiso chebuterly valve Pressure buterly valve inotora kudzikisa eccentricity kukosha uye kuwedzera kusimba kwe butterfly plate, kuona shaft yeti zero uye activator. chisimbiso chevhavhavhavhavha.
Structural hunhu
1. Compact structure, diki size, light weight, flexible operation, nyore kushandisa;
2. Iyo yetatu-dimensional eccentric yakawanda-layer yakaoma sealing chimiro inogamuchirwa, uye yekuisa chisimbiso kwayo inovimbika uye inosvika zero leakage;
3. Ivhavha haina flange, iyo inounza kurerukira kukuru uye runako kune insulation uye kuputira pombi; 4. lt ine hunhu hwehiah tembiricha, hiah pressure, corrosion resistance uye kupfeka kuramba.
Kuuraya standard
Dhizaini uye Kugadzira: GB/T12238, JB/T8527
Welding size: GB/T12224
Kureba kwechimiro: GB/T122
Kuedza uye kuongorora: GB/T13927, JB/T9092
Performance paramende
Inoshanda tembiricha: Carbon simbi: -29 ℃ ~ 425'℃ Stainless simbi: -409C ~ 600 °
Kuendesa fomu: worm drive, pneumatic drive, electric drive, hvdraulic drive
Product Dimensions
Zvadaro:SQ61F kukiya welded bhora vharafu
Previous:DS343H kaviri kumanikidza flange butterfly vharafu

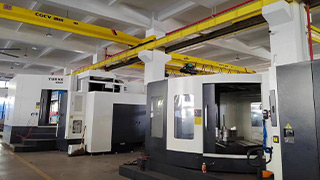

Guta reGCGV rakanyoreswa i228.80 miriyoni yuan, inofukidza nzvimbo ye22300m². Kune vanopfuura 200 vashandi, avo vanopfuura 30% vane koreji dhigirii kana pamusoro, kusanganisira 25 vakuru uye vepakati matekiniki. Iyo kambani ine machining nzvimbo, CNC lathes, CNC vertical lathes,
